Part number
|
Name
|
Function
|
Size
|
Remarks
|
Photograph
|
|

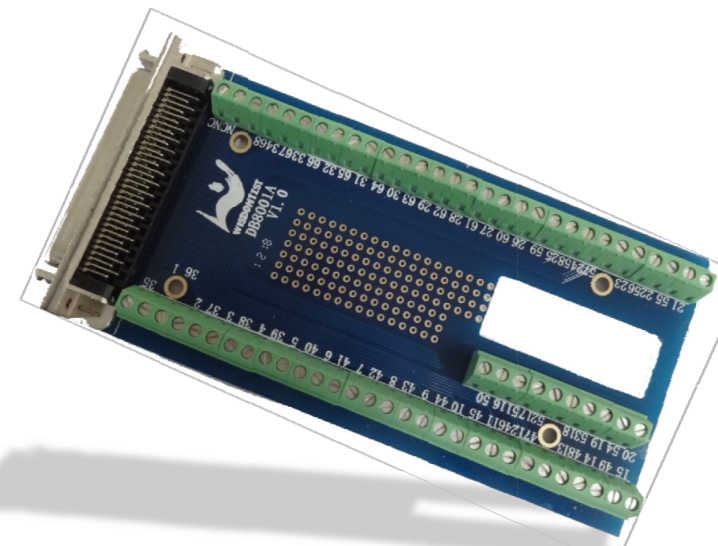

ELE000017601
|
DB001A
|
68-pin female D-SUB high-density pin connector to 3.81 terminal block
|
130*65
(mm*mm)
|
Commonly used for NI board conversion
|
|
|
ELE000017701
|
DB002A
|
68-pin male D-SUB high-density pin connector to 3.81 terminal block
|
130*65
(mm*mm)
|
Commonly used for NI board conversion
|
|
|

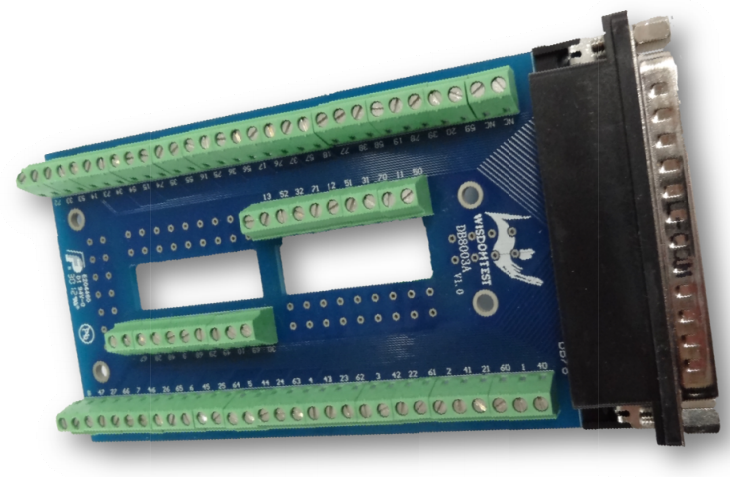

ELE0000188A1
|
DB003A
|
78-pin male D-SUB high-density pin connector to 3.81 terminal block
|
130*67
(mm*mm)
|
Commonly used for NI board conversion
|
|
|

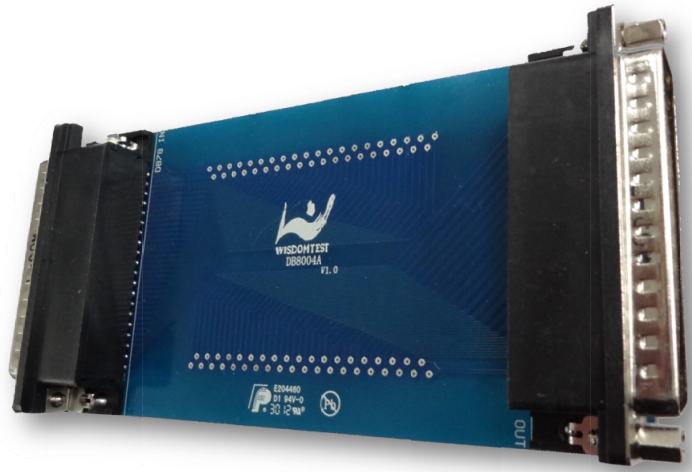

ELE0000189A1
|
DB004A
|
Two 78-pin male D-SUB high-density pin connectors conversion
|
130*67
(mm*mm)
|
Commonly used for NI board conversion
|
|
|

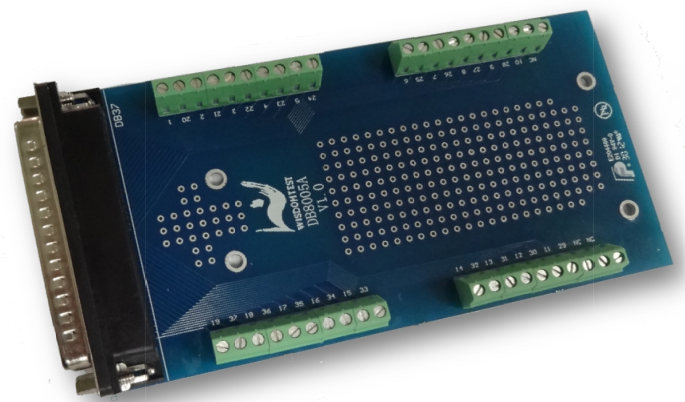

ELE0000190A1
|
DB005A
|
DB37 male to terminal block
|
137*70
(mm*mm)
|
DB header conversion
|
|
|

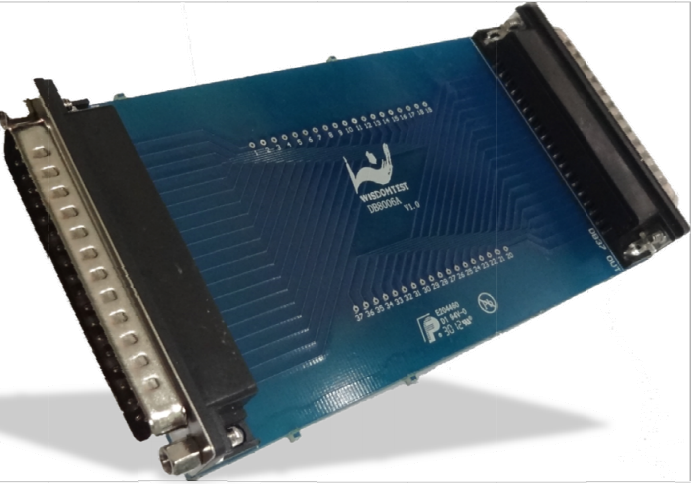

ELE0000191A1
|
DB006A
|
Two DB37 male connectors conversion
|
130*70
(mm*mm)
|
DB header conversion
|
|
|
ELE0000026A1
|
DB007A
|
78-pin female D-SUB high-density pin connector to 3.81 terminal block
|
137*67
(mm*mm)
|
Commonly used for NI board conversion
|
|
|

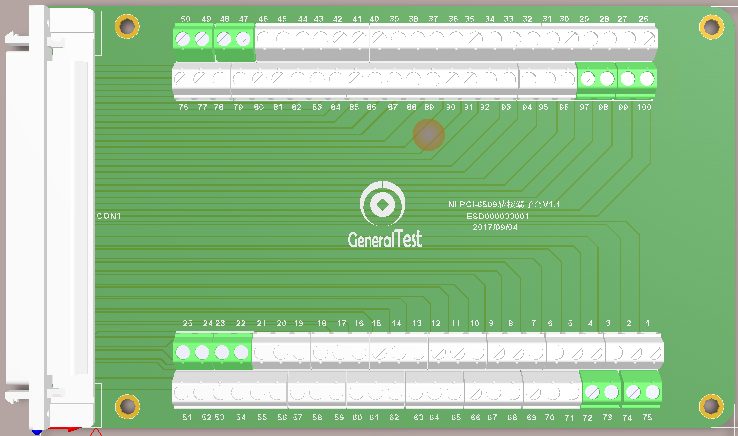

GBESD00008A1
|
DB008A
|
100pin Adaptor Card, for R1 project
|
140*85
(mm*mm)
|
Commonly used for NI 6509 card signal conversion
|
|
|

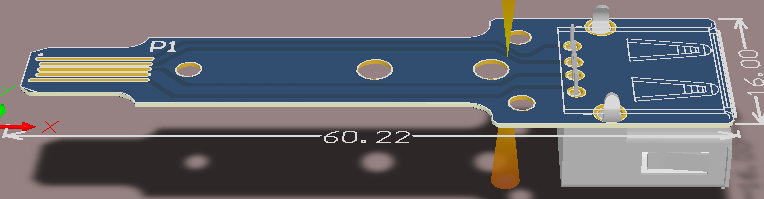

0305A0001701
|
GT-170001A
|
usb mini to usb A
|
60*16
(mm*mm)
|
Commonly used in fixture's actual plug-in modules
|
|
|

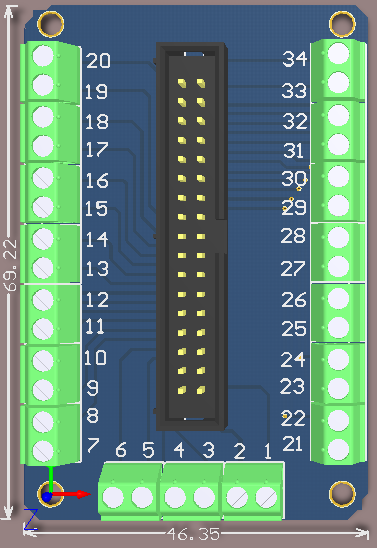

0305A0001702
|
GT-1A0001A
|
34pin simple牛角 to 3.81 terminal block
|
69*46
(mm*mm)
|
Simple Bull Horn Conversion
|
|
|

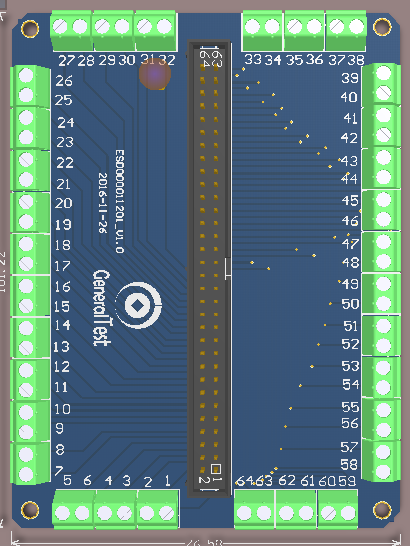

0305A0001703
|
GT-1A0002A
|
64pin simple 牛角 to 3.81 terminal block
|
100*76
(mm*mm)
|
Simple Bull Horn Conversion
|
|
|

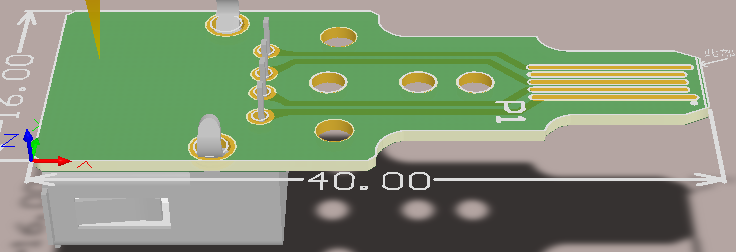

0305A0001924
|
GT-170003A
|
USBA-Mini to golden finger
|
40*16(mm*mm)
|
Commonly used in fixture's actual plug-in modules
|
|
|

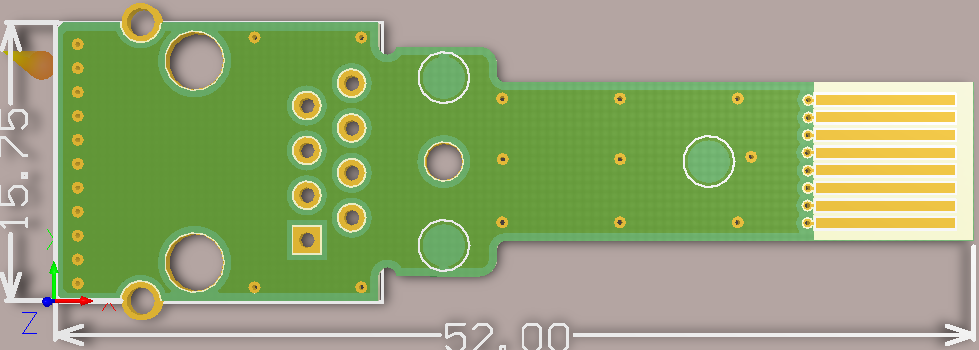

0305A0001972
|
GT-110042A
|
RJ45 to golden finger
|
52*15
(mm*mm)
|
Commonly used in fixture's actual plug-in modules
|
|
|
0305A0002124
|
GT-120011A
|

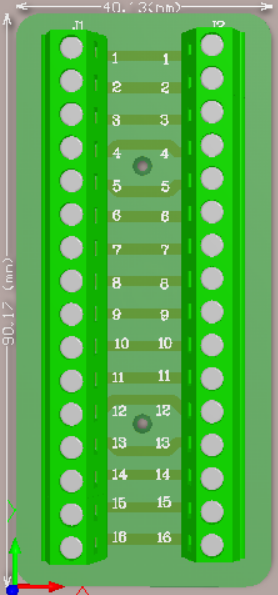

16PIN5.08 green terminal adapter board
|
90*40
(mm*mm)
|
Commonly used for system power leads, replacing UK terminals
|
|
