Switch Card-Com
Brand：GENERALTEST| Part number | Name | Function | Size | Remarks | Photograph |

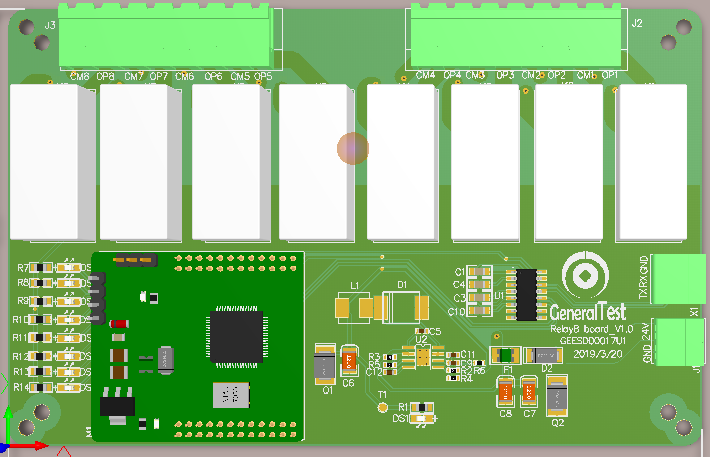

| 0305A0001766 | GT-3206A | 8-channel high-current relay, RS232 control |
135*85 (mm*mm) |
Maximum current 16A |
|

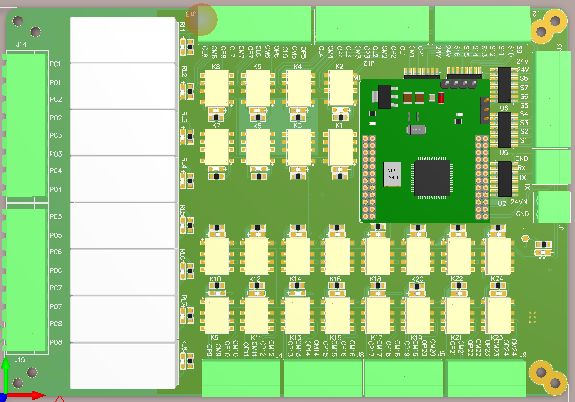

| 0305A0001767 | GT-3207A | 24-channel signal relay + 8-channel high-current relay + 16-channel sensor, RS232 control |
160*110 (mm*mm) |
Maximum current 16A |
|

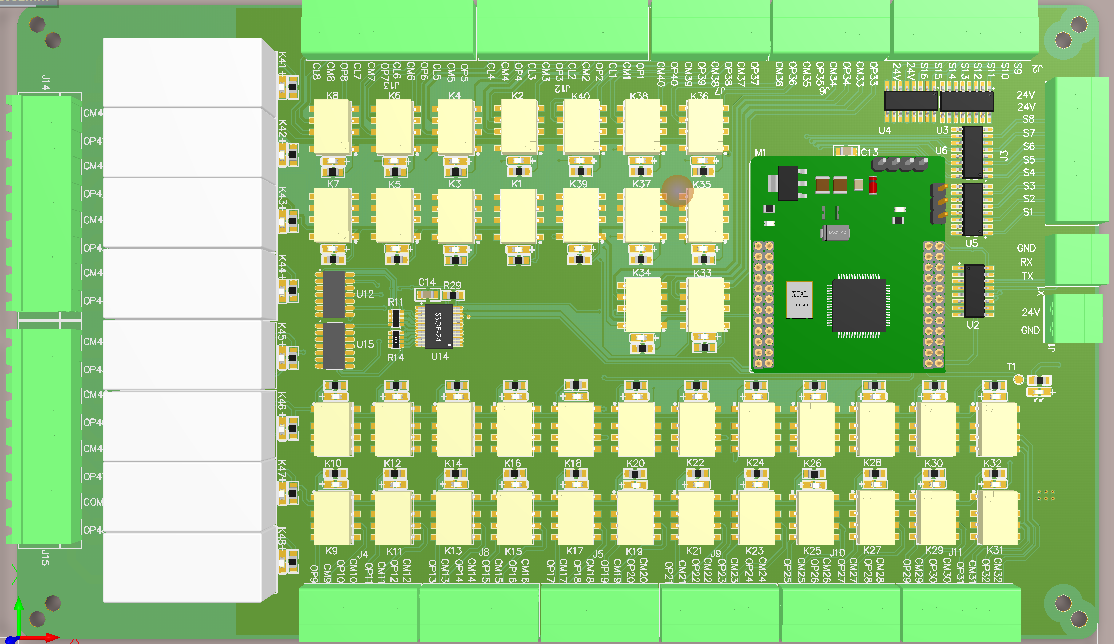

| 0305A0001768 | GT-3208A | 40-channel signal relay + 8-channel power relay + 16-channel sensor, RS232 control |
205*120 (mm*mm) |
Maximum current 16A |
|

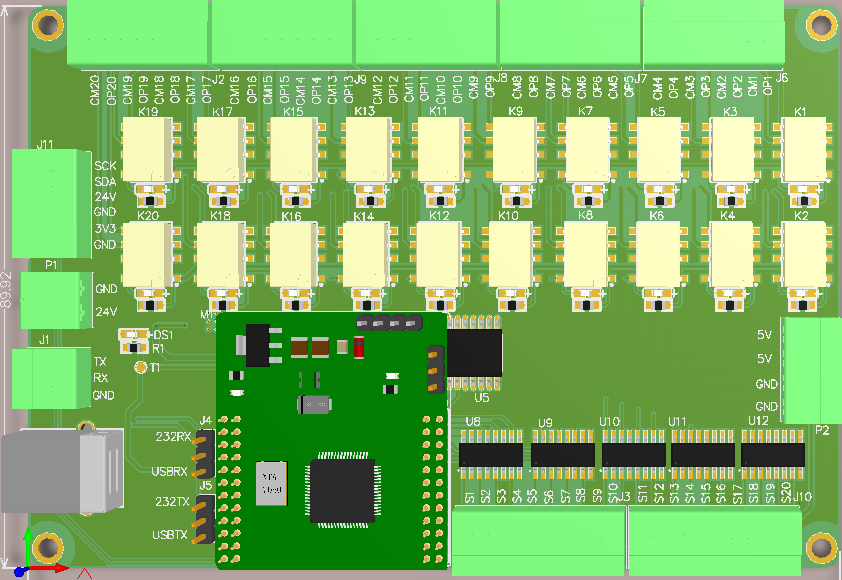

| 0305A0001769 | GT-3201A | 20-channel signal relay + 20-channel sensor, RS232/USB control |
130*90 (mm*mm) |
Functionally compatible with WA580S |
|

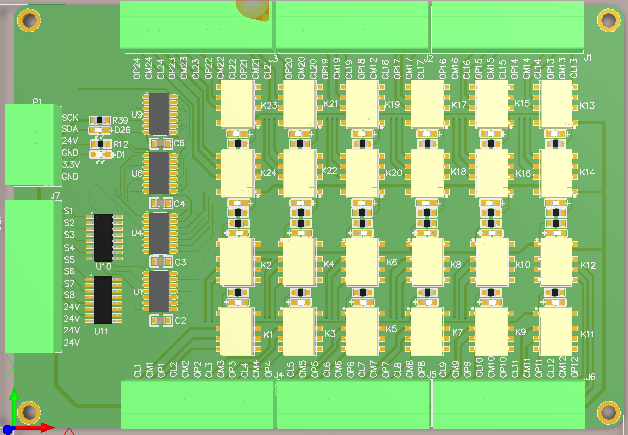

| 0305A0001770 | GT-3209A | 24-channel signal relay + 8-channel sensor, I2C control |
130*90 (mm*mm) |
Often used as an expansion board for COM_R20_S20 |
|

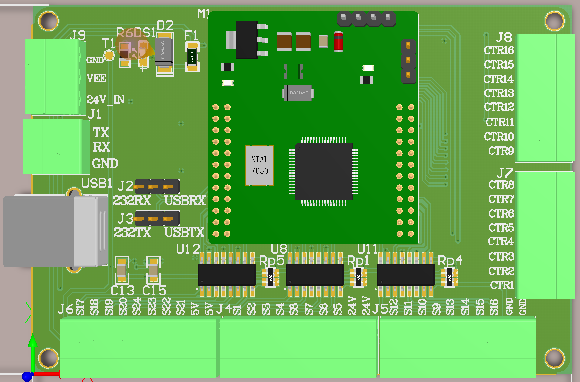

| 0305A0001771 | GT-3202A | 16-channel drive signal + 24-channel sensor, RS232/USB control |
95*65 (mm*mm) |
Commonly used as a control board for automatic fixtures |
|

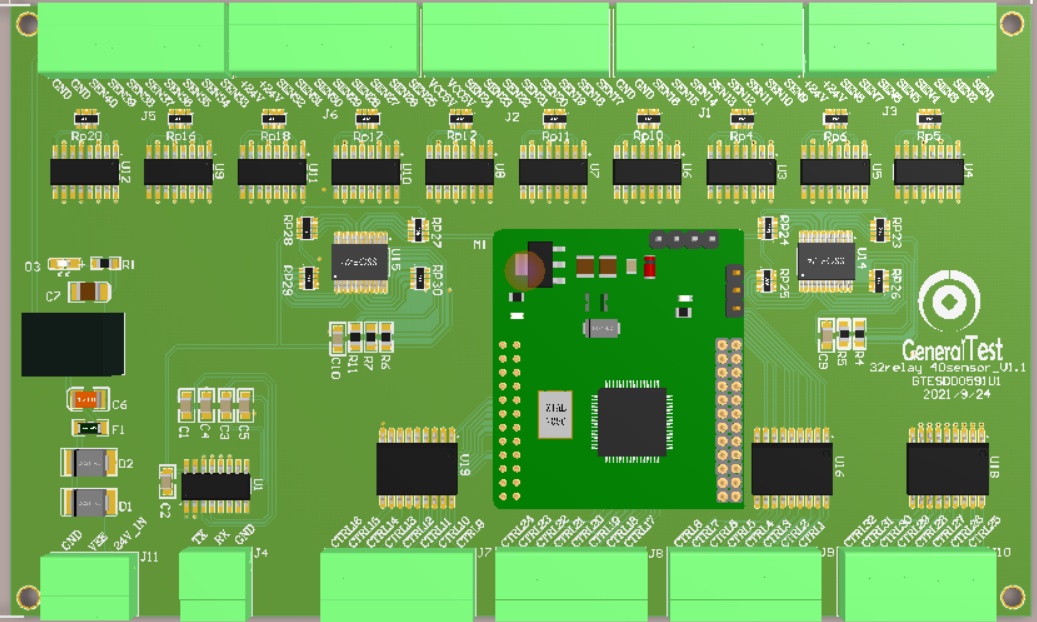

| 0305A0002297 | GT-3225A | Serial port controlled 32-channel output drive, 40-channel sensor input |
150*90 (mm*mm) |
Commonly used as a control board for automatic fixtures |
|
