Name
|
Function
|
Photograph
|
|

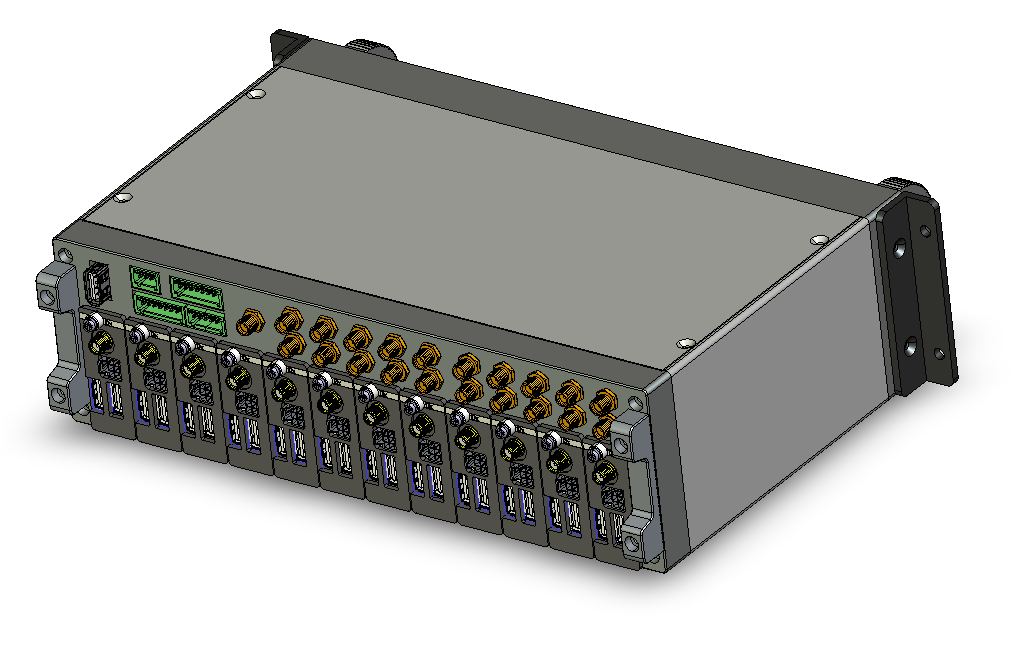

1.5U-Lodbox
|
Multifunctional switching / AI acquisition / DI acquisition
|
|
|
AdapterCard
|
Realize the conversion from backplane signals to each sub-card signals
|
|
|
Backboard
|
Realize the communication and control of the box
|
|
|
FrontPanel
|
Used for USB and signal transfer
|
|
|
DiagnoseCard-USB2.0
|
One channel of USB2.0 diagnosis and two channels of signal diagnosis for no-load, load and short circuit
|
|
|

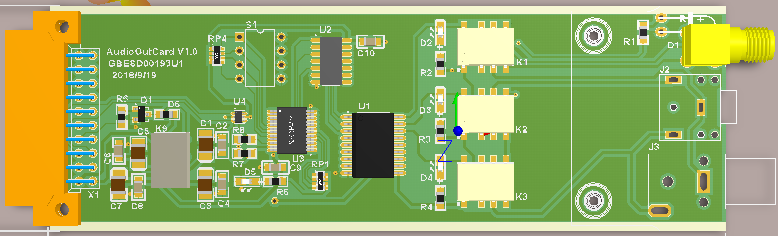

AudioOut
|
Switch AUX and MIC signals to AO output
|
|
|

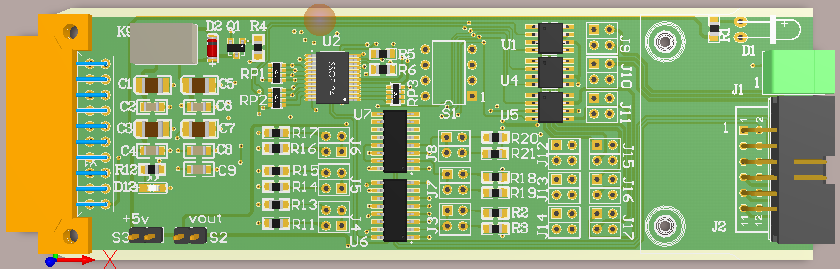

DIOCard
|
6 channels of DO, 6 channels of DI, commonly used for detection of cylinders and position sensors
|
|
|

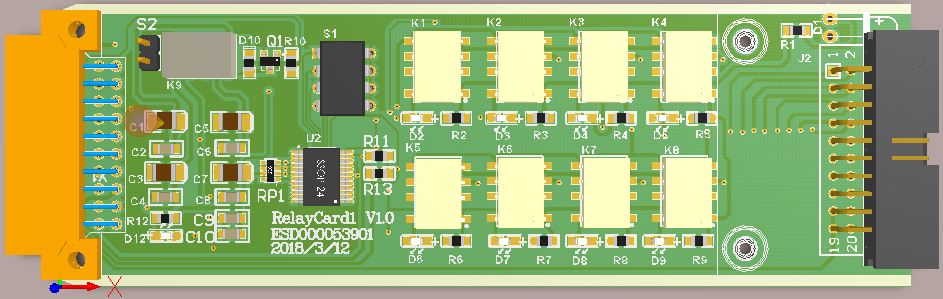

Relay1
|
8-to-1 AI acquisition card
|
|
|

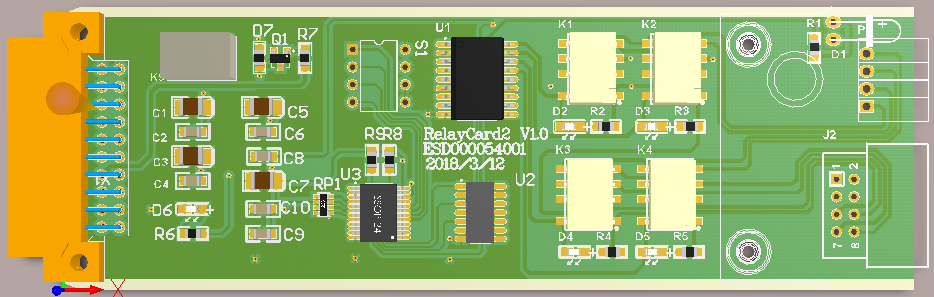

Relay2
|
Two groups of 4*2 relay matrices
|
|
|

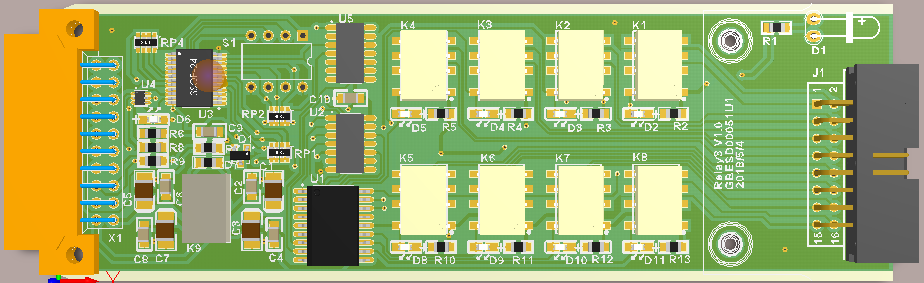

Relay3
|
8 independent signal relays
|
|
|

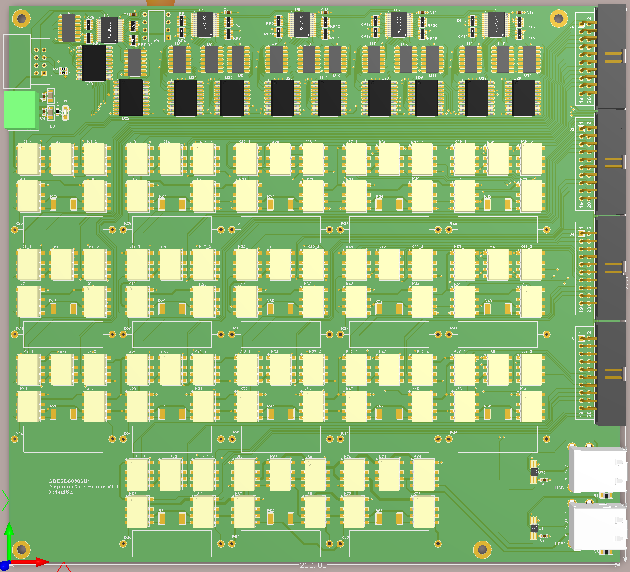

Relay4
|
8*2 relay matrix
|
|
|
DiagnoseCard-USB3.0
|
One channel of USB3.0 diagnosis and two channels of signal diagnosis for no-load, load and short circuit
|
|
|

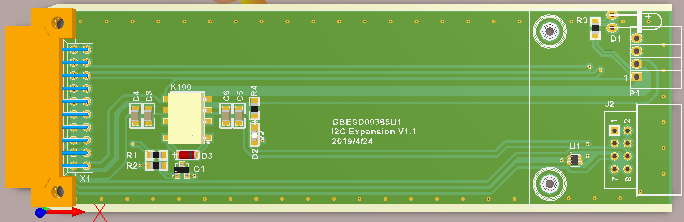

I2C-extend
|
Lead out the I2C signal of the BOX for expansion
|
|
|
I2C-DiagnoseCard-1
|
I2C extended 16-channel signal diagnosis + 2-channel USB2.0 diagnosis
|
|
|
I2C-DiagnoseCard-2
|
I2C extended 8-channel signal diagnosis + 1-channel USB2.0 diagnosis
|
|
|
Relay3-v2.0
|
8 independent signal relays
|
|
