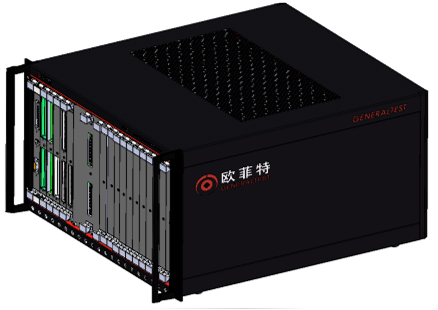

GT880 Chassis
-
FunctionalityMulti-function test switching acquisition control unit
-
Sizes633mm*289mm*350mm
-
Note
1. 1 control slot + 20 function slots;
2. Use RS232 to communicate with PC;
3. Multiple function boards, flexible combination methods;
4. platform-based architecture, expandable

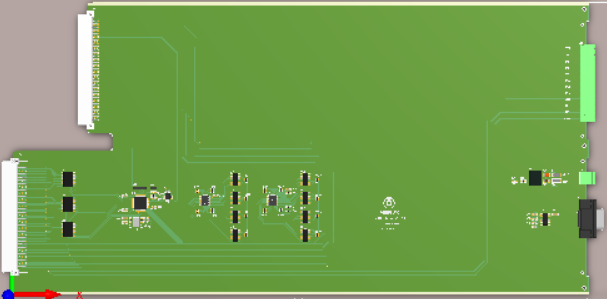

| Material Number | Name | Functionality | Sizes | Note | Photograph |
| GTESD00119B01 | GT-880001A | Communication Board + Fixture Control | 460mm*230mm |
1. 8-channel fixture ID collection (FID1-FID8); 2. 32-channel digital sensor collection (Sin1-Sin32); 3. 24-channel open-drain output channels (Out1-Out24); 4. 4 groups of function board current collection (Isensor1-4); |
|

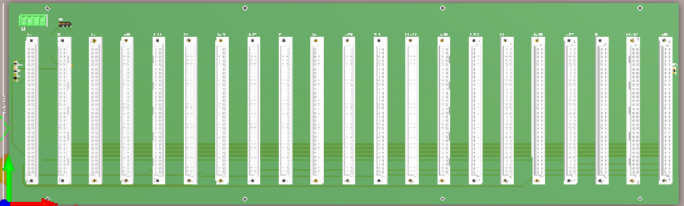

| GTESD00120B01 | GT-881401A | Backplane | 460mm*230mm | Share the public resources of the board, including communication, power supply, bus, etc.; |
|
| GTESD00121B01 | GT-886102A | Small Signal Load Board | 460mm*230mm |
1. 48-channel dual load card; each channel is connected to two loads; 2. Maximum current per channel is 2A; |
|

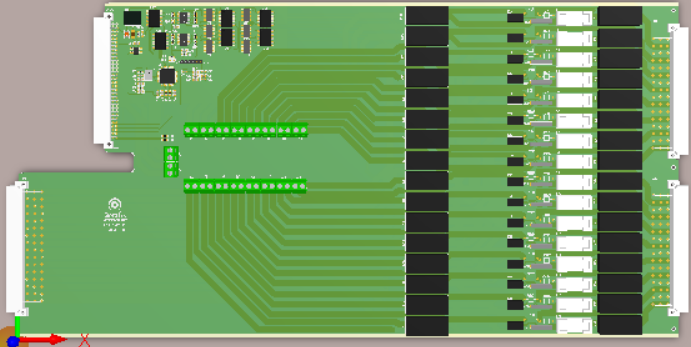

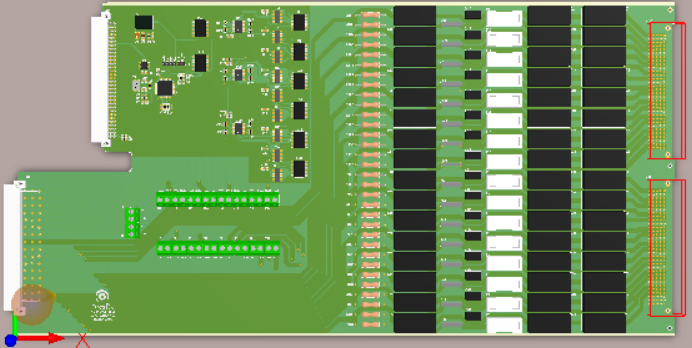

| GTESD00122B01 | GT-886201A | High Current Load Board | 460mm*230mm |
1. 16-channel dual load card; each channel is connected to two loads; (no COM terminal) 2. Maximum current per channel is 7.5A; with sampling resistor and overcurrent protection; |
|

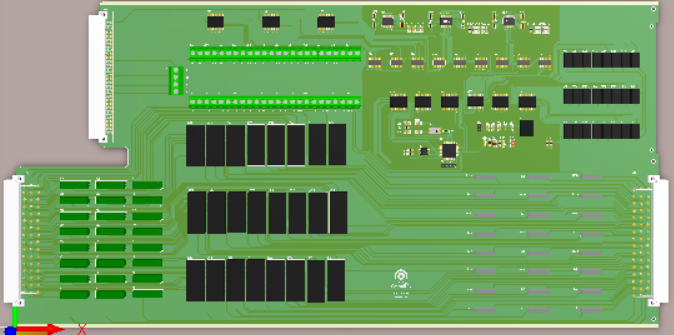

| GTESD00123B01 | GT-886101A | Medium Current Load Board | 460mm*230mm |
1. 24-channel single load card; 2. Maximum current per channel is 2A; with current sampling resistor |
|
| GTESD00124B01 | GT-886202A | High Current Load Board | 460mm*230mm |
1. 16-channel single load; 2. Maximum channel current is 16A; with current sampling and overcurrent protection; |
|

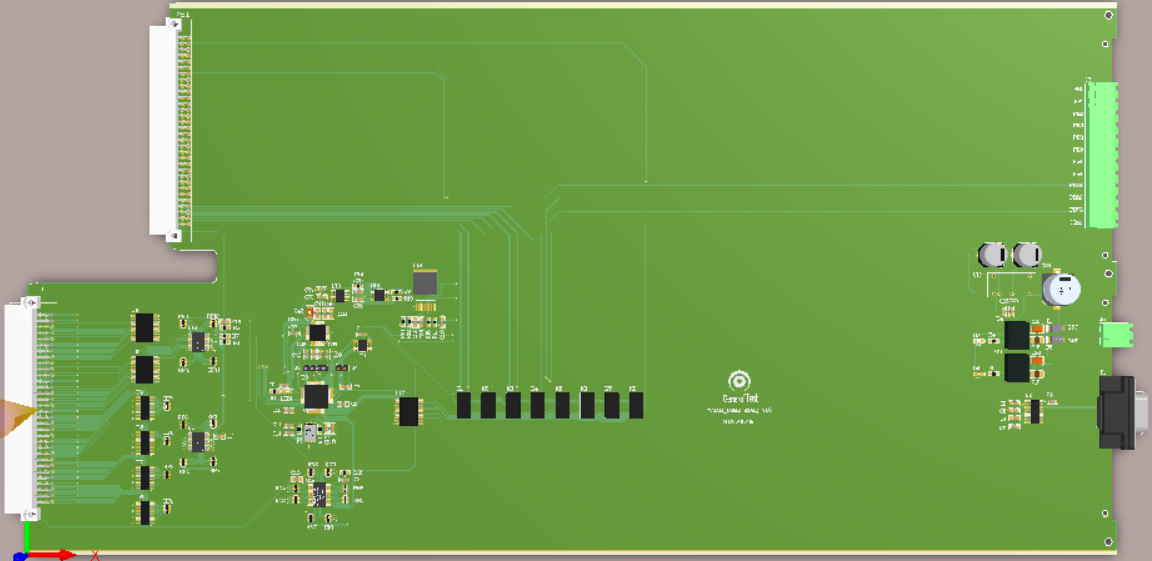

| GTESD00137B01 | GT-880002A | Communication Board - DAQ Board | 460mm*230mm | Communication board with DAQ function |
|

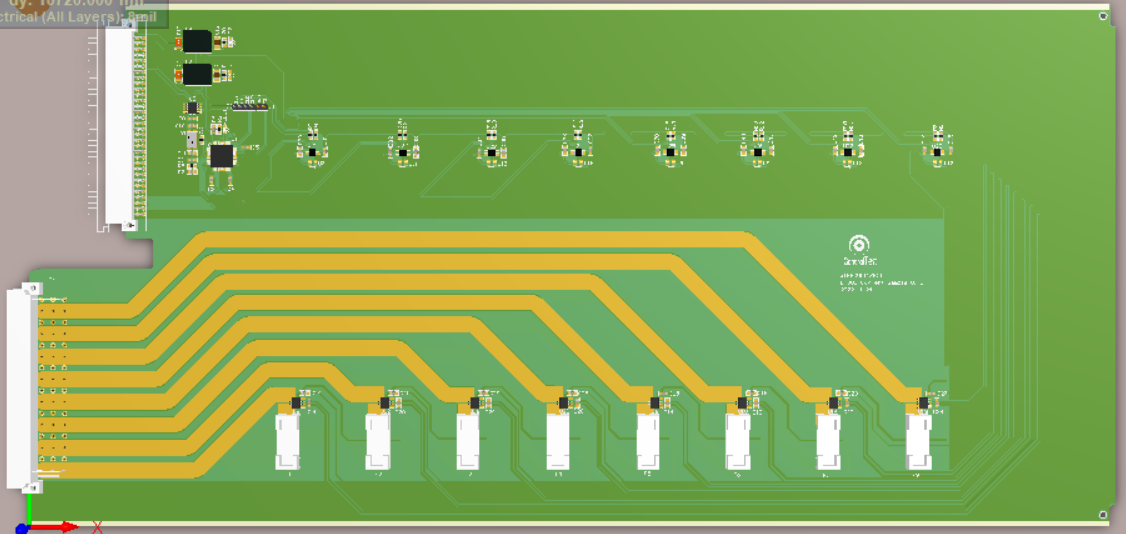

| GTESD00116B01 | GT-886203A | Ultra-high Current Load Board | 460mm*230mm | 8-channel ultra-high current load board, maximum current 40A |
|

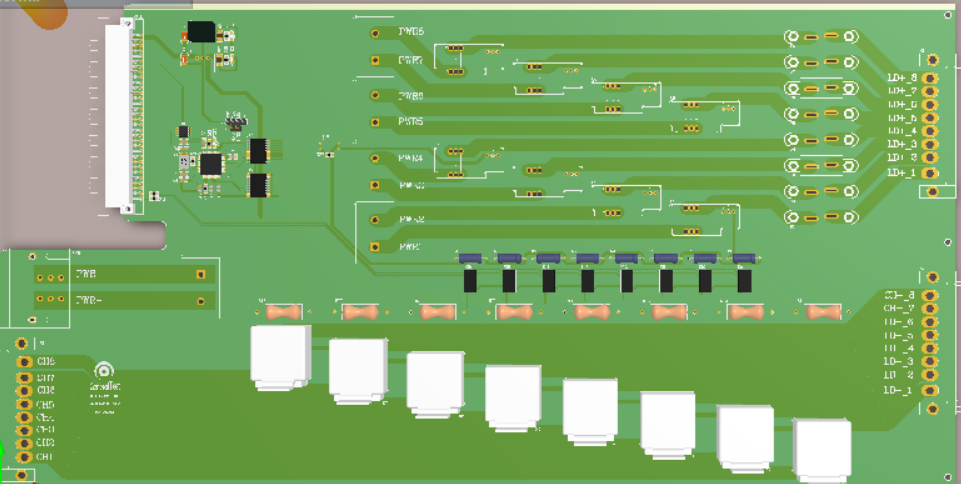

| GTESD00117B01 | GT-885201A | High Current Sampling Board | 460mm*230mm | 8-channel high current sampling board, used with 7178 |
|

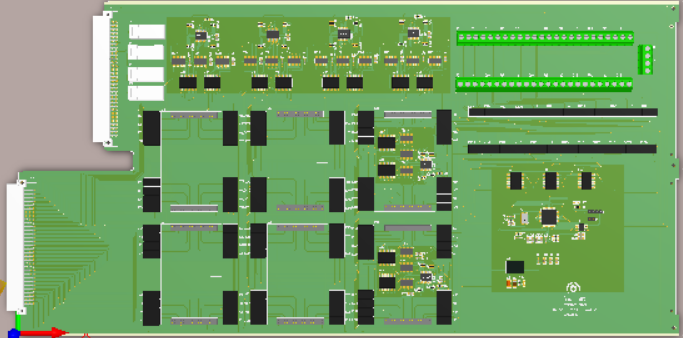

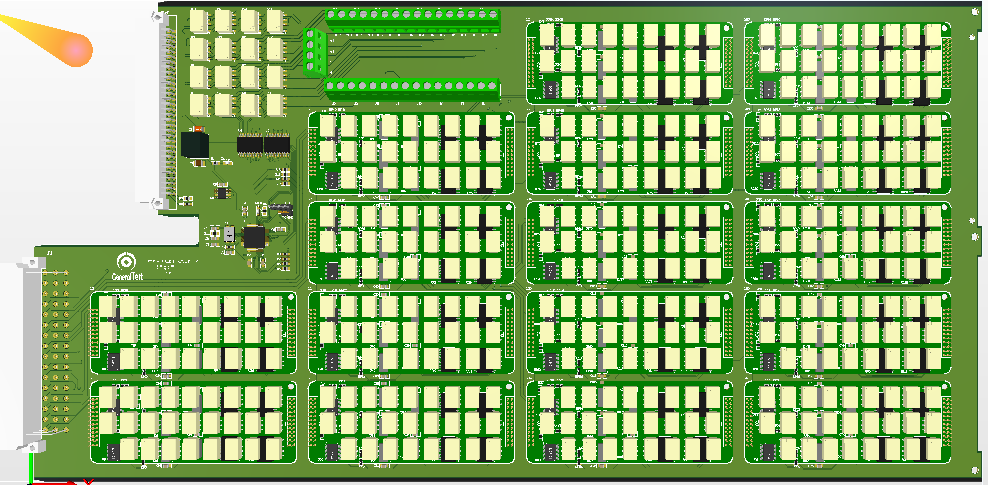

| GTESD00200B01 | GT-887203A | Matrix Card | 460mm*230mm | 16*4+40*4 matrix board card |
|

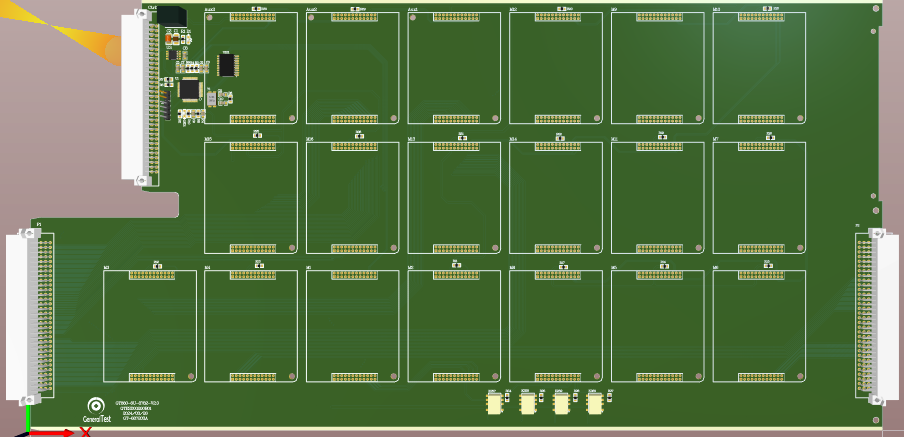

| GTESD00201B01 | GT-887204A | Expansion Matrix Card | 460mm*230mm | 64*4 matrix board card |
|

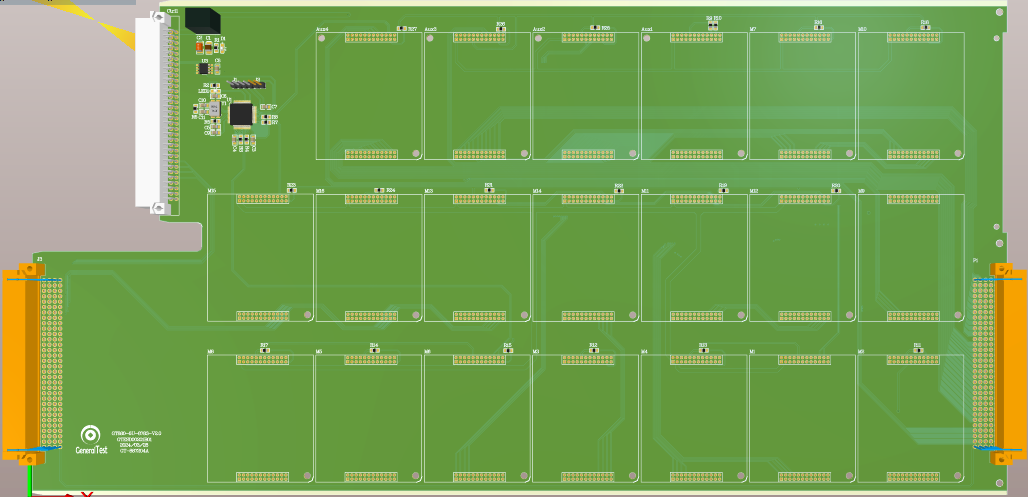

| GTESD00202B01 | GT-882203A | Programmable Resistor Card | 460mm*230mm | 16-channel independent programmable resistor card, resistance range 0.1-10K, step 1 ohm, power greater than 1W |
|
