| Basic Function | Relay output |
|
| Application Scope | Used for high-current switching requiring IO control | |
| Basic Information |

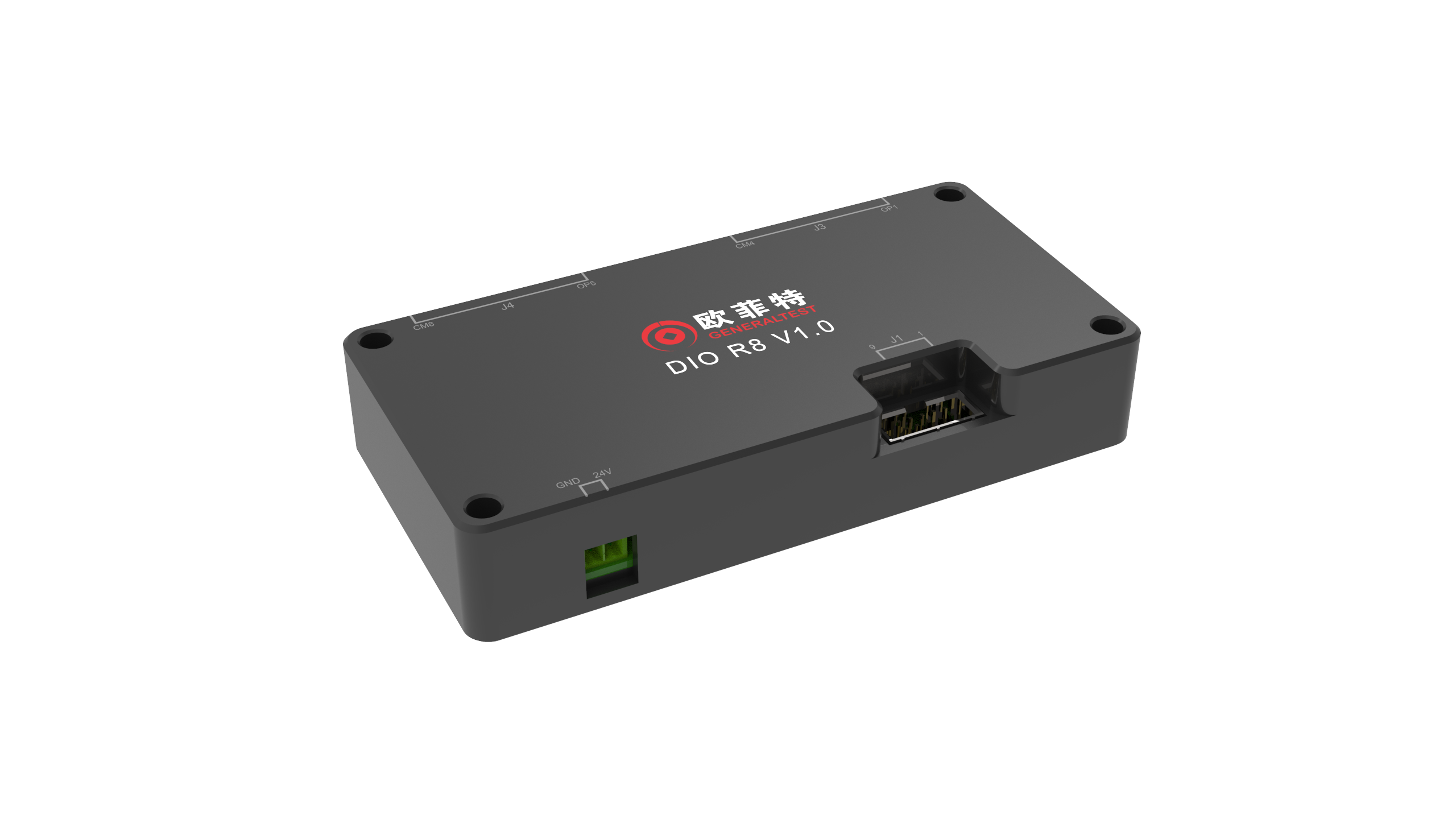

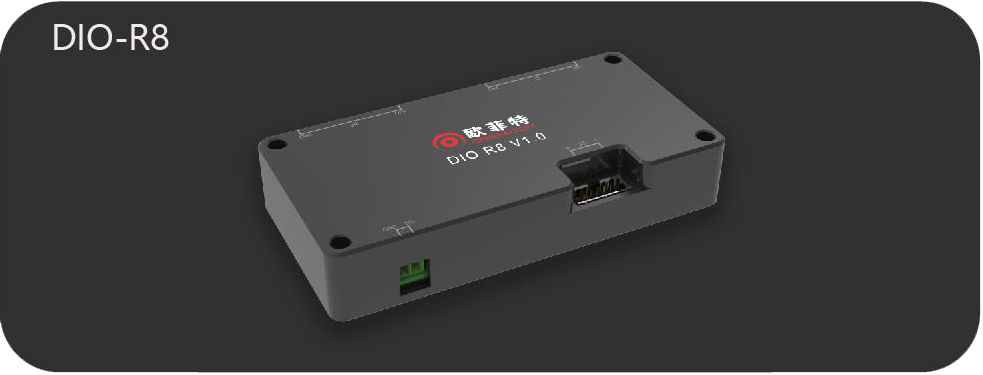

Name: DIO-R8 Model: GT-B-DIO01-A Specification: 135mm×65mm Power Supply Voltage: 24VDC |
|
| Main Parameters |
External Control Interface: Digital IO 8-channel signal relays, maximum current 16A 5.08mm terminal block for external connections |
| Basic Function | Relay Output & Sensor Input |
|
| Application Scope | Suitable for general-purpose signal relay and digital sensor applications requiring IO control. | |
| Basic Information |

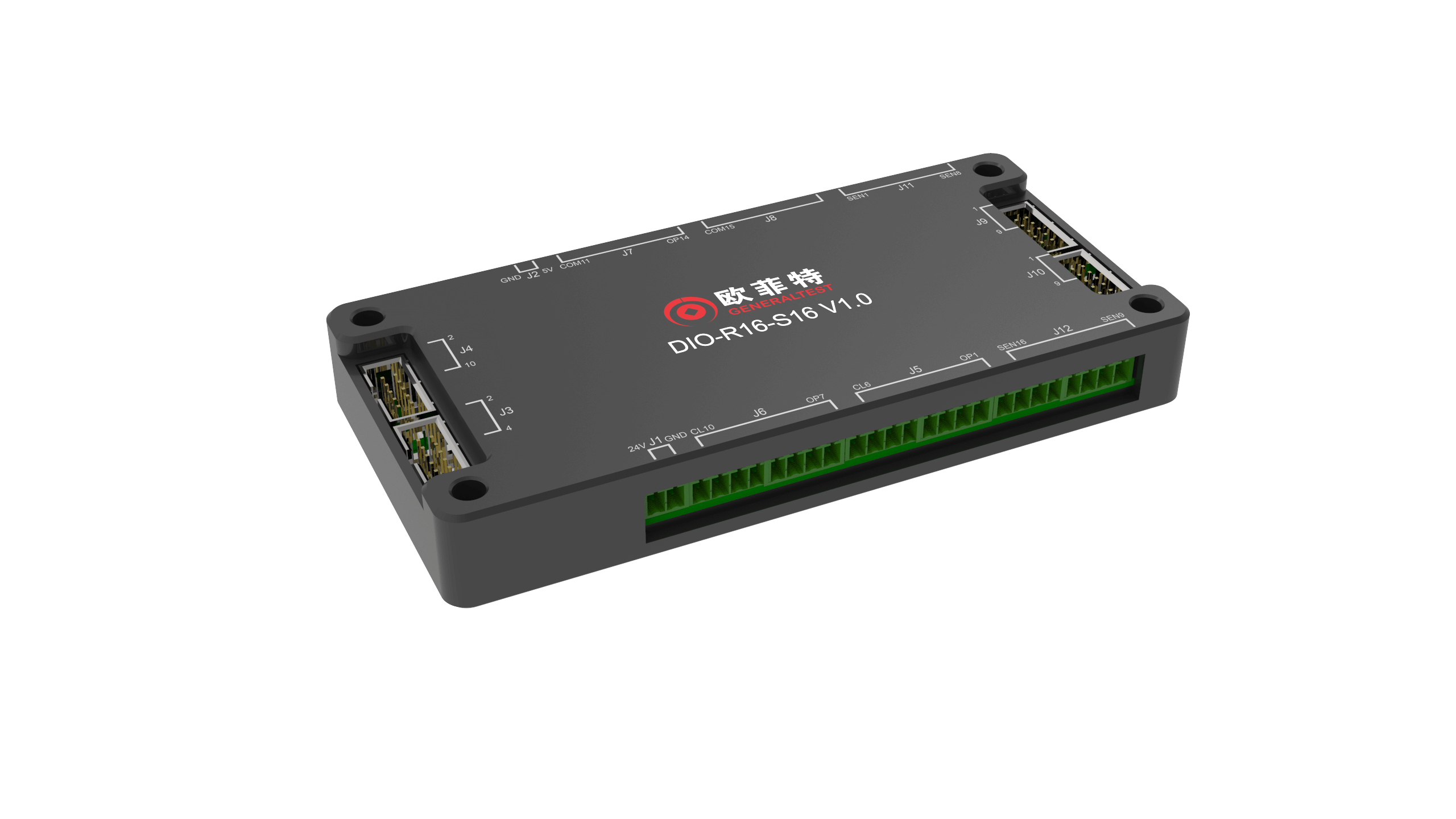

Name: DIO-R16-S16 Model: GT-B-DIO02-A Specifications: 150mm×70mm Power Supply Voltage: 5V/24V DC |
|
| Main Parameters |
External Control Interface: Digital IO 16-channel signal relays, witd a maximum current of 2A 16-channel digital sensor channels (NPN, 5-24V level signals) Simple (cowhorn-style) and DIO interfaces; green terminals are for relay/sensor connections |
| Basic Function | Relay Output & Sensor Input |
|
| Application Scope | Suitable for general-purpose signal relays, high-current relays, and digital sensor applications requiring IO control. | |
| Basic Information |

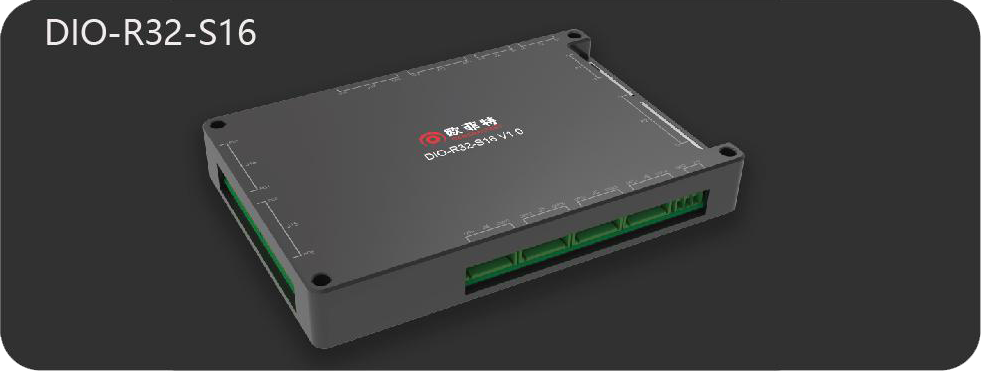

Name: DIO-R32-S16 Model: GT-B-DIO03-A Specifications: 116.5mm×175mm Power Supply Voltage: 24V DC |
|
| Main Parameters |
External Control Interface: Digital IO 8-channel high-current relays, witd a maximum current of 16A 24-channel signal relays, witd a maximum current of 2A 16-channel digital sensor channels (NPN, 5-24V level signals) Simple cowhorn-style and DIO interfaces; green terminals for relay/sensor connections |
| Basic Function | Relay Output & Sensor Input |
|
| Application Scope | Suitable for general-purpose signal relays, high-current relays, and digital sensor applications requiring IO control. | |
| Basic Information |

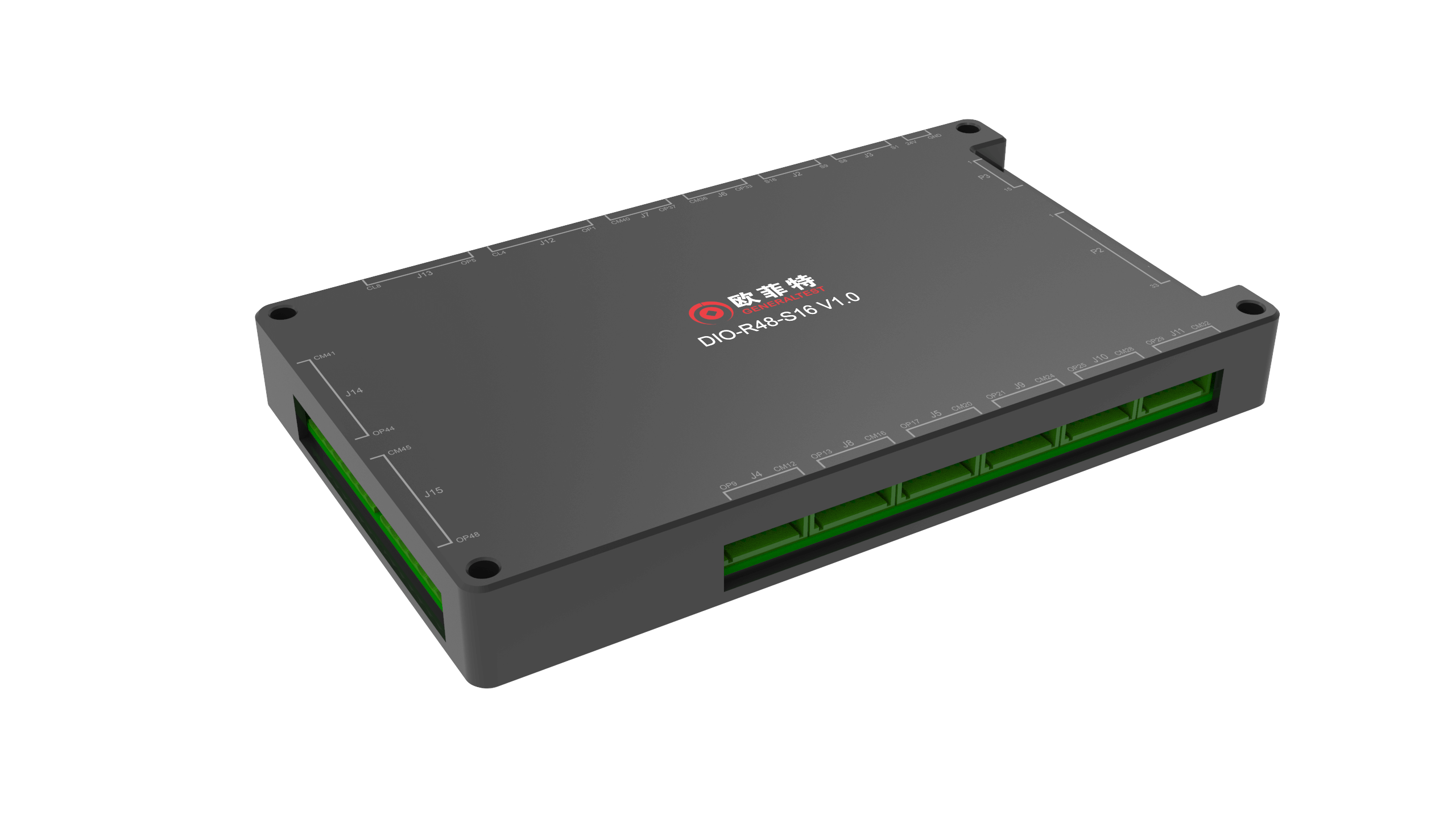

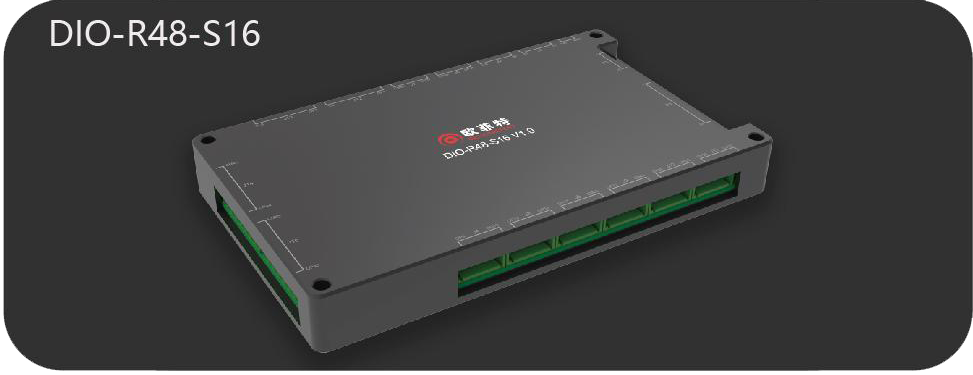

Name: DIO-R48-S16 Model: GT-B-DIO04-A Specifications: 160mm×110mm Power Supply Voltage: 24V DC |
|
| Main Parameters |
External Control Interface: Digital IO 8-channel high-current relays, witd a maximum current of 16A 40-channel signal relays, witd a maximum current of 2A 16-channel digital sensor channels (NPN, 5-24V level signals) Simple cowhorn-style and DIO interfaces; green terminals for relay/sensor connections |
