Software Ul of antenna test system

Introduction

The Network Analyzer Automatic Test Software is designed to implement automated testing for passive devices such as cables. It enables batch configuration of test parameters, allowing full testing across multiple frequency bands in one operation. Test records are automatically stored in reports, and the software is compatible with vector network analyzers from multiple major brands.

Main Parameter

• Real-time display of test results and defect information.
• Automatic storage of historical data for easy access at any time.
• Capability to save data such as tester information, testing equipment details, serial numbers (SN), and total record counts for convenient reference.

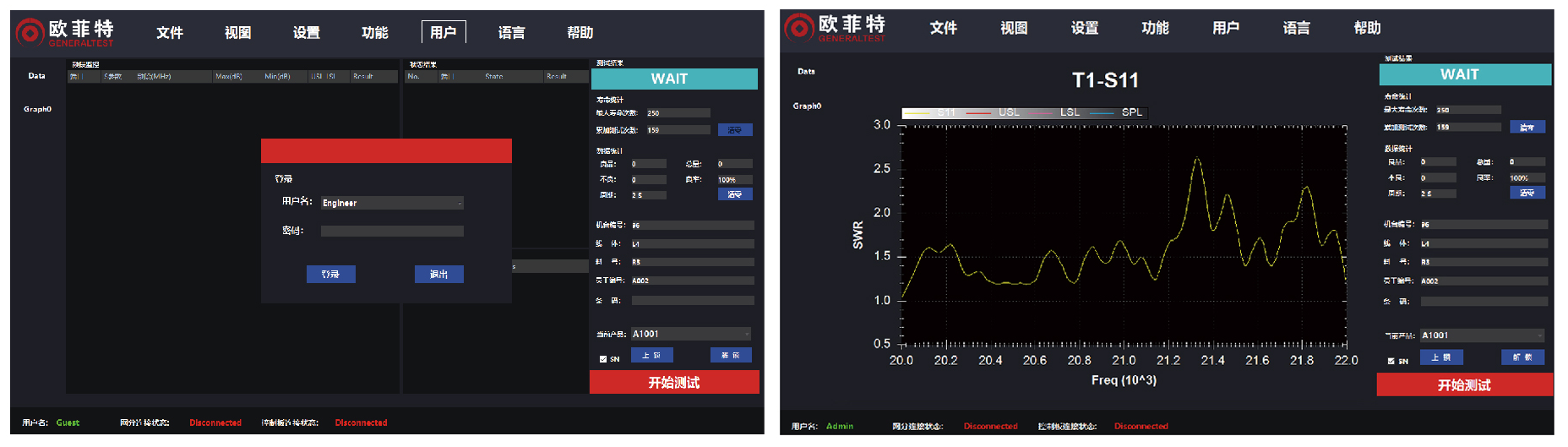

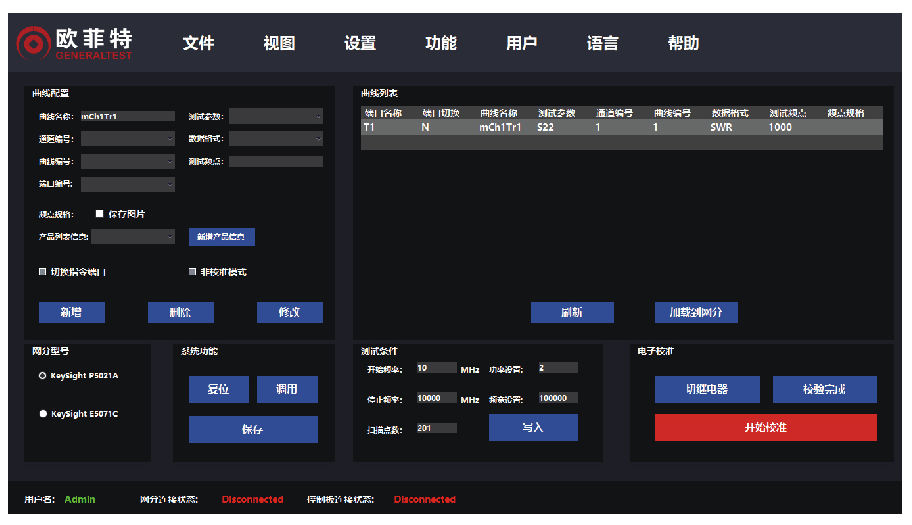

Parameter Configuration Interface

1. Channels
2. Test frequencies
3. Upper and lower limits
4. Data formats
5. S parameters

Antenna test system GTE20/21 series

Introduction

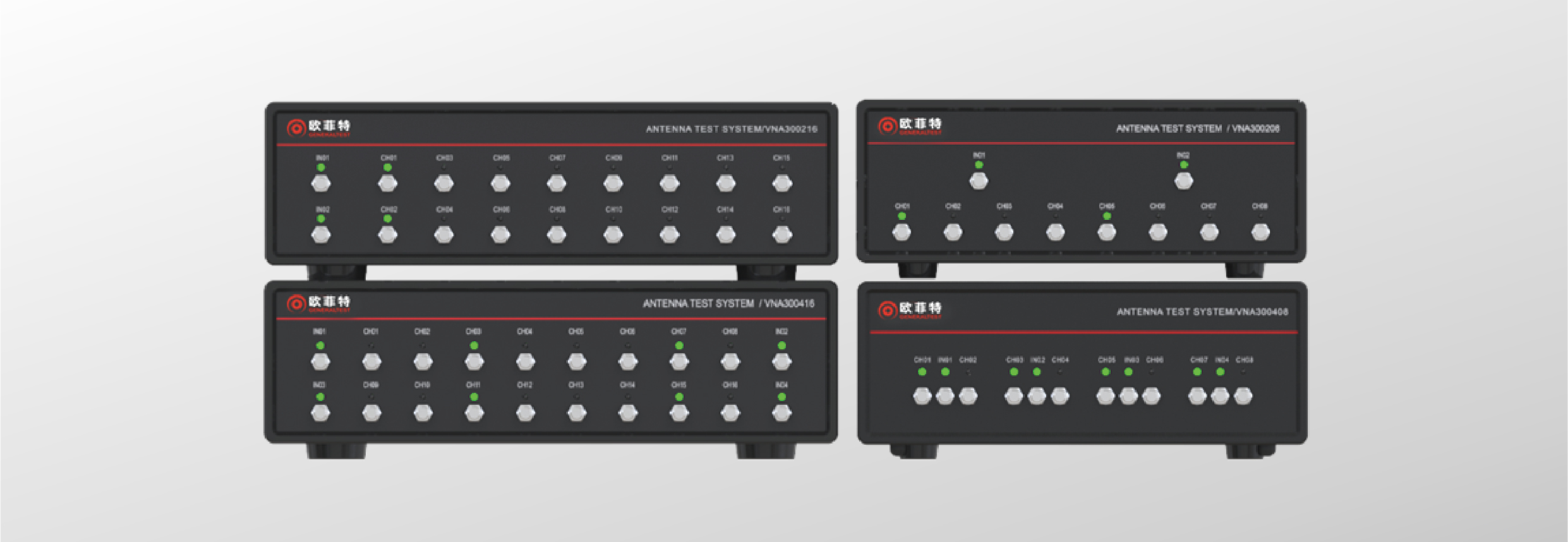

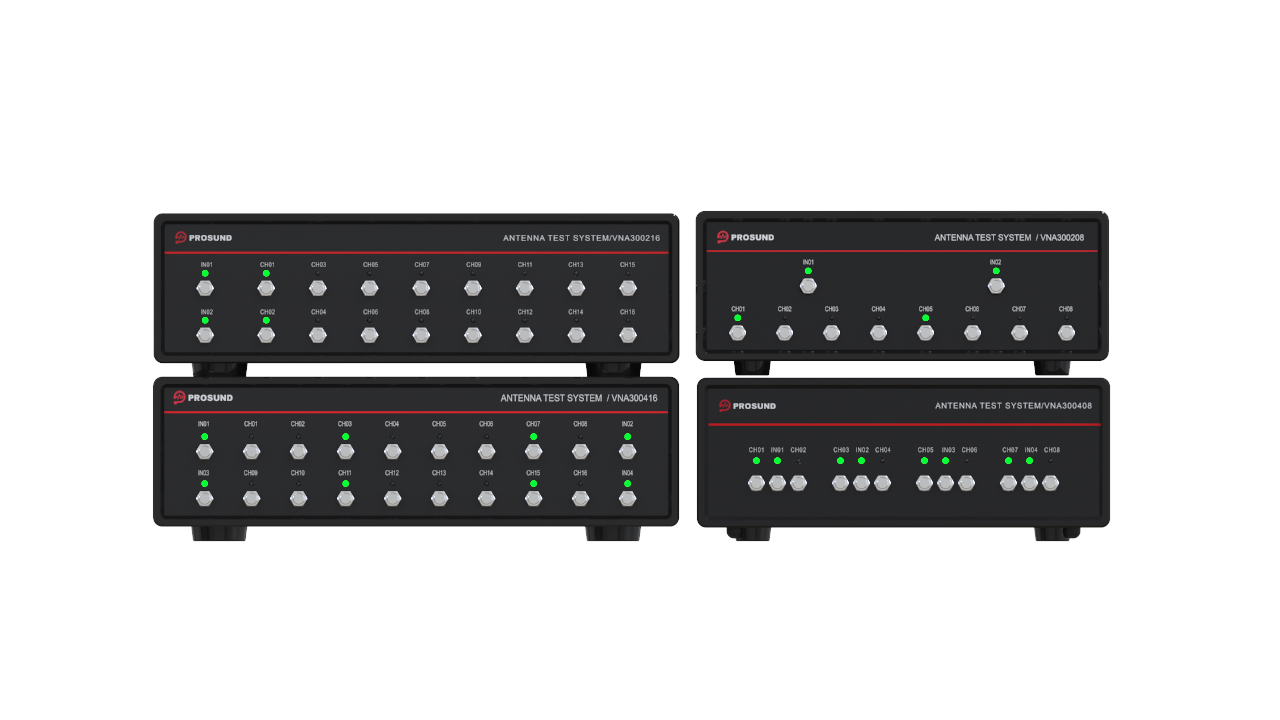

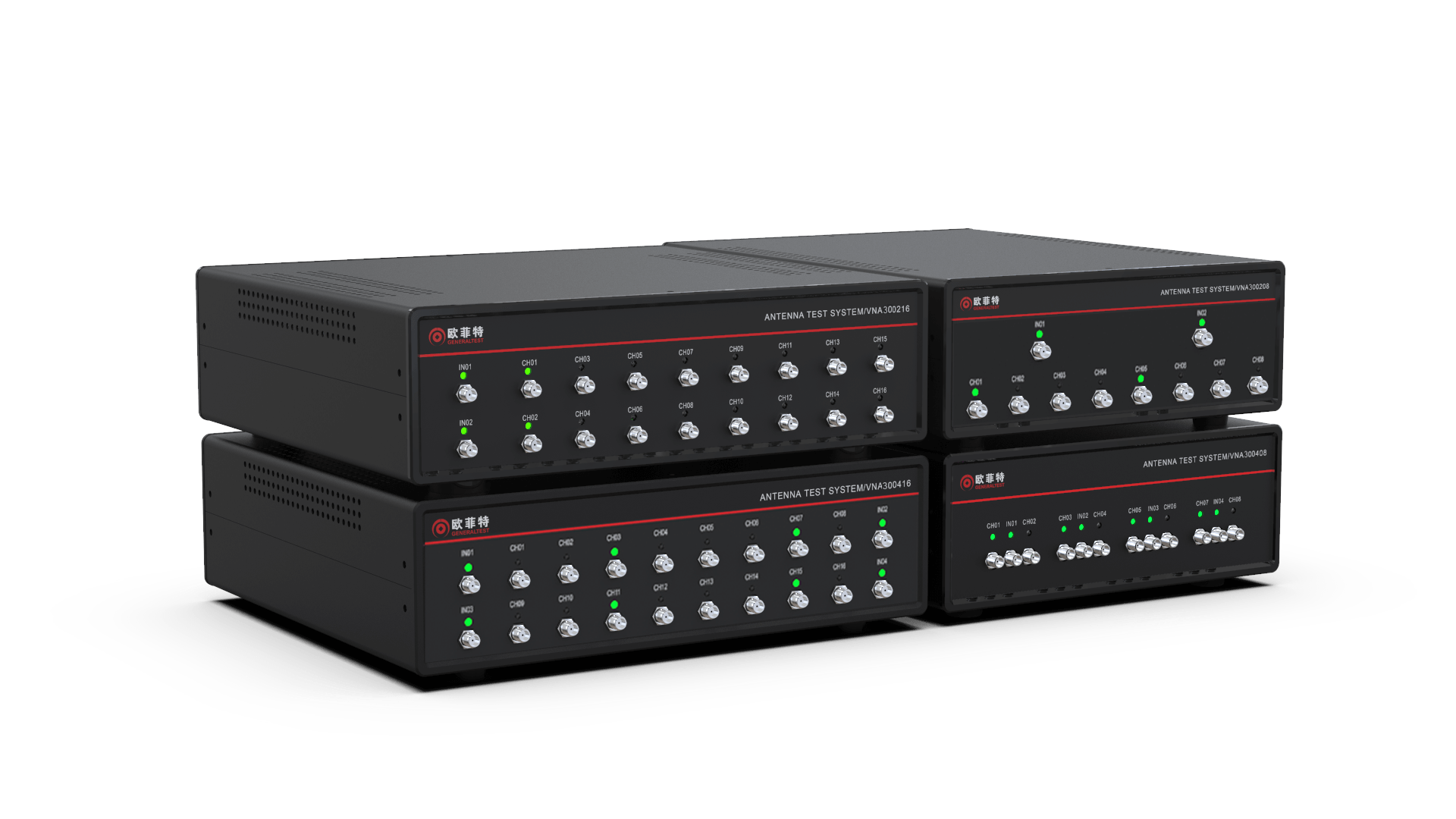

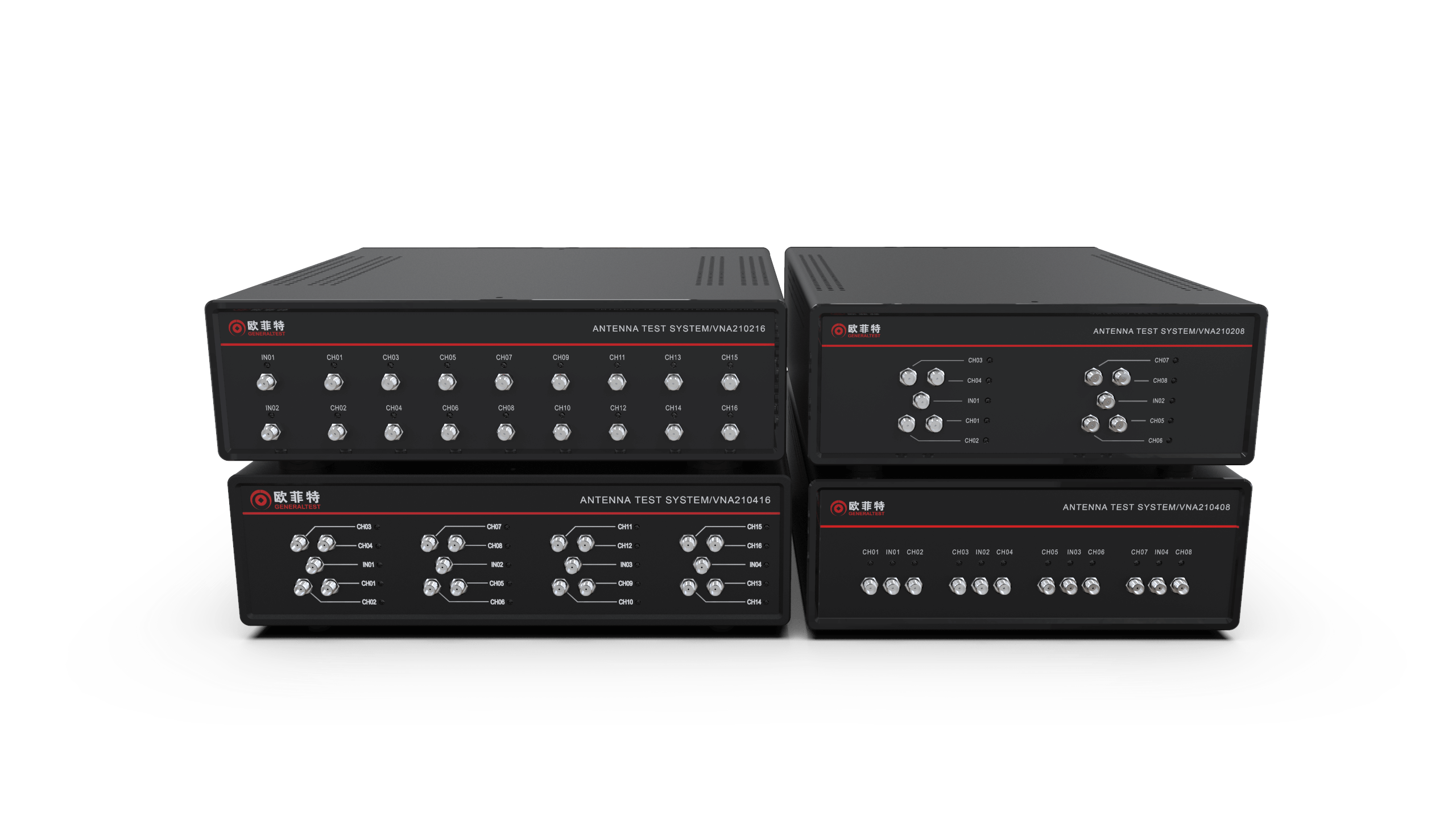

The Antenna Test System/VNA20/21 series is a multi-port RF automatic measurement system based on a network analyzer. The RF module is composed of 2/4 single-pole n-throw RF coaxial switches, which can expand the 2/4 ports of the network analyzer into 8/16-port outputs. By connecting the network analyzer and switches according to various interface standards, and through the test platform developed by Offert, the system controls the network analyzer and switches to form flexible switching and testing from test resources to the DUT (Device Under Test).

Antenna test system GTE30 series

Introduction

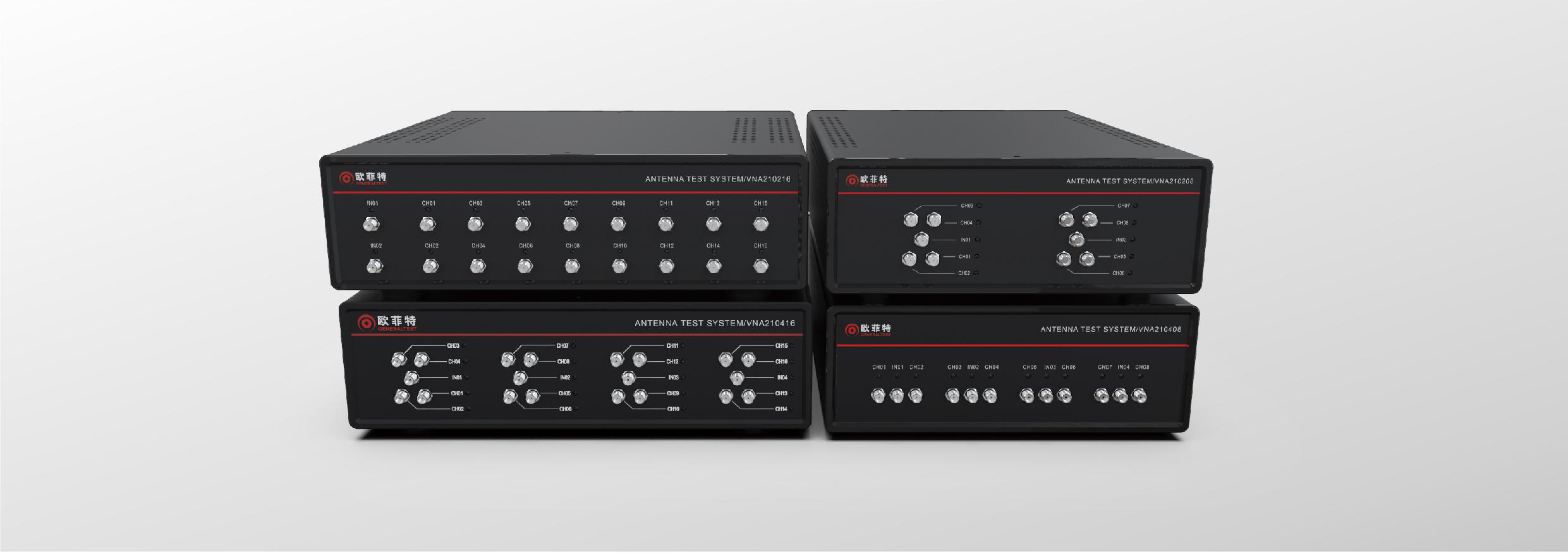

The Antenna Test System/VNA30 series is a multi-port RF automatic measurement system based on a network analyzer. The RF module consists of 2/4 single-pole n-throw solid-state RF switches, which can expand the 2/4 ports of the network analyzer into 8/16-port outputs. By interconnecting the network analyzer and switches according to various interface standards, the test platform developed by Offert simultaneously controls the network analyzer and switches to enable flexible switching and testing from test resources to the DUT (Device Under Test).
