| Type | Parameter |
| Appearance dimensions (mm) | 270(H)*520(W)*478(L) |
| Internal dimensions | 135(H)*480(W)*426(L) |
| Colour | RAL7035 |
| Weight | 26kg |
| Operating Frequency | 100MHz-6GHz |
| Isolation Degree |
100MHz-1GHz>80dB 1GHz-3GHz≥70dB 3GHz-6GHz≥60dB |

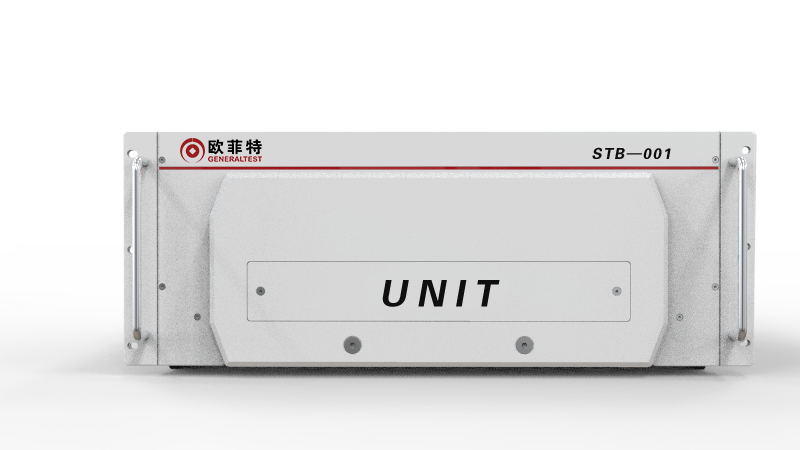

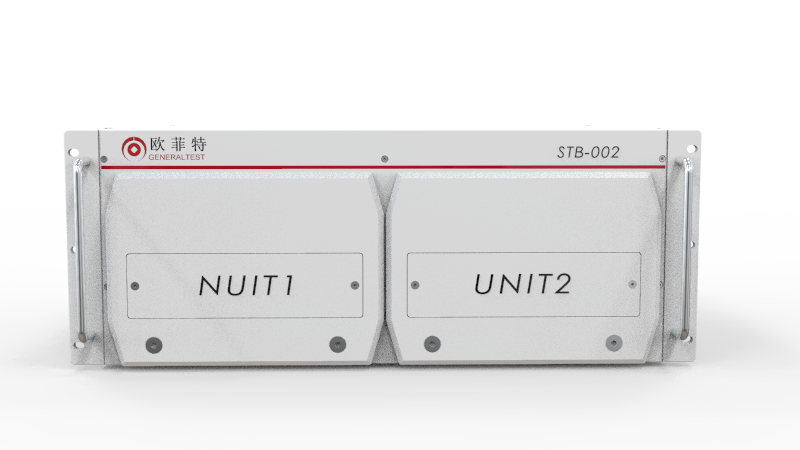

STB - 001/STB - 002 is a pneumatic shielding box. It can handle conduction and radiation to provide an interference - free testing environment for the wireless communication devices under test. With good shielding tightness and a firm structure, its conveniently detachable upper cover is convenient for the debugging of internal fixtures. It is currently the most economical and practical shielding test box.
| Type | Parameter |
| Appearance dimensions (mm) | 270(H)*520(W)*478(L) |
| Internal dimensions | 135(H)*480(W)*426(L) |
| Colour | RAL7035 |
| Weight | 26kg |
| Operating Frequency | 100MHz-6GHz |
| Isolation Degree |
100MHz-1GHz>80dB 1GHz-3GHz≥70dB 3GHz-6GHz≥60dB |
