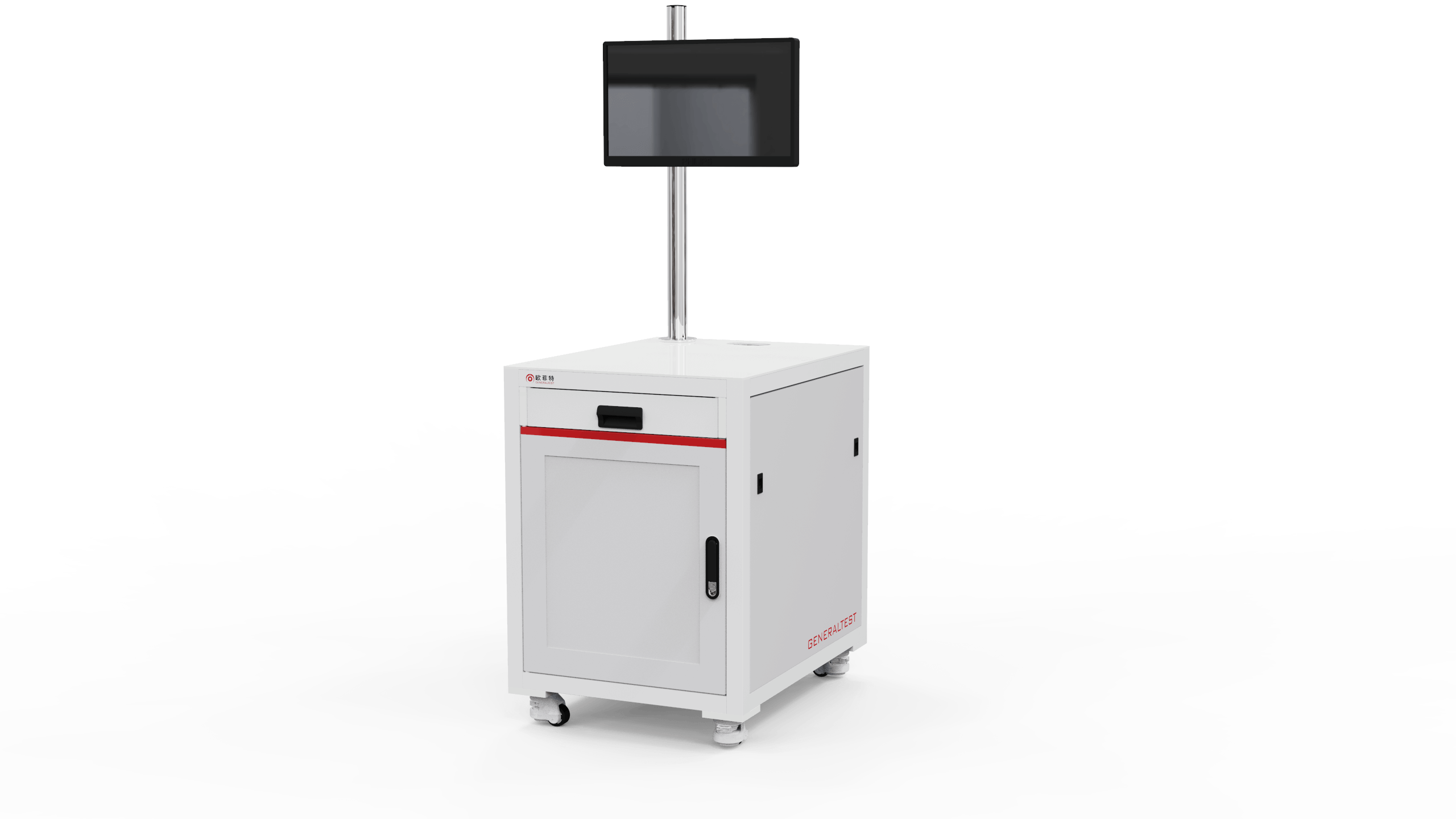

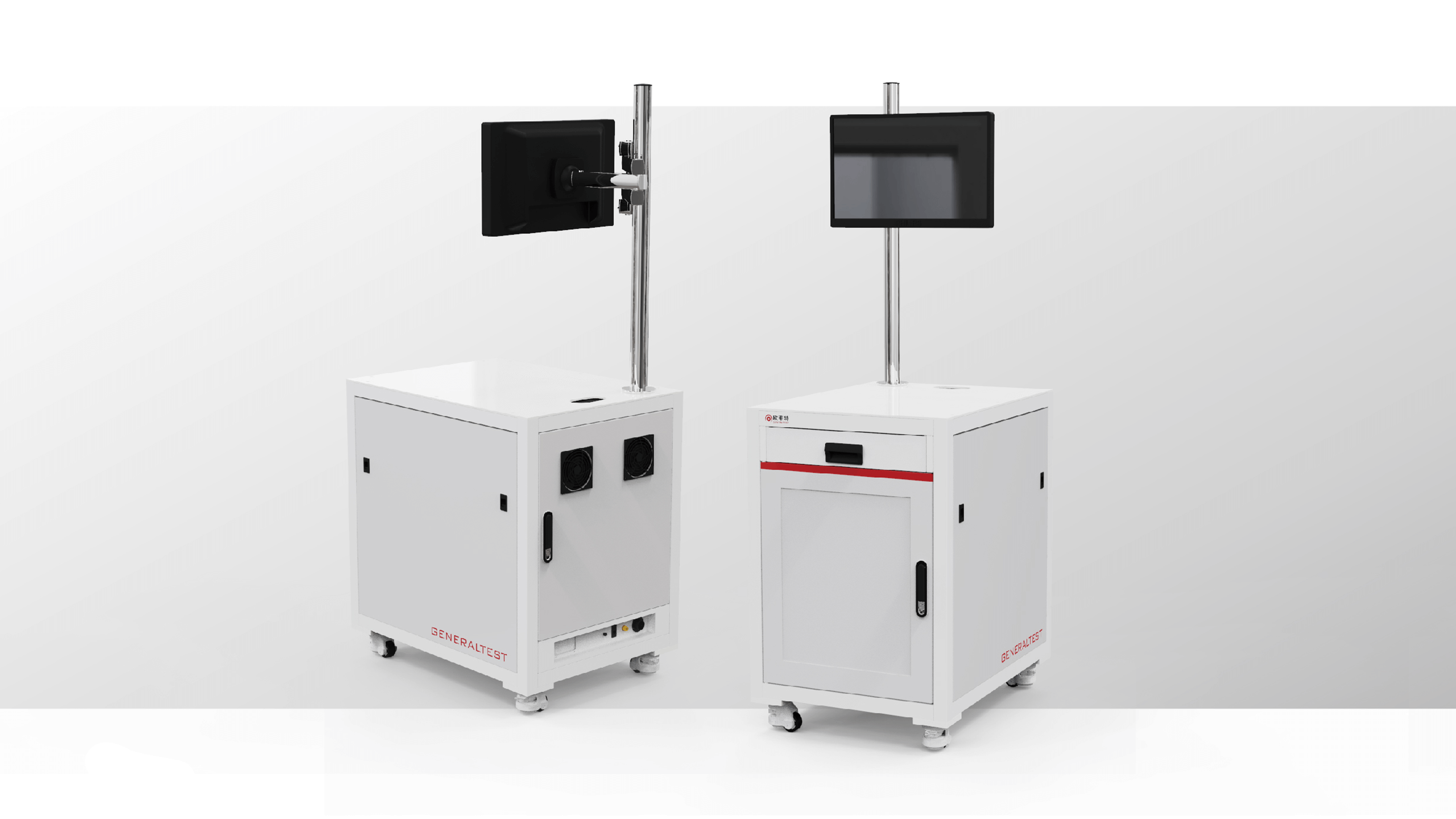

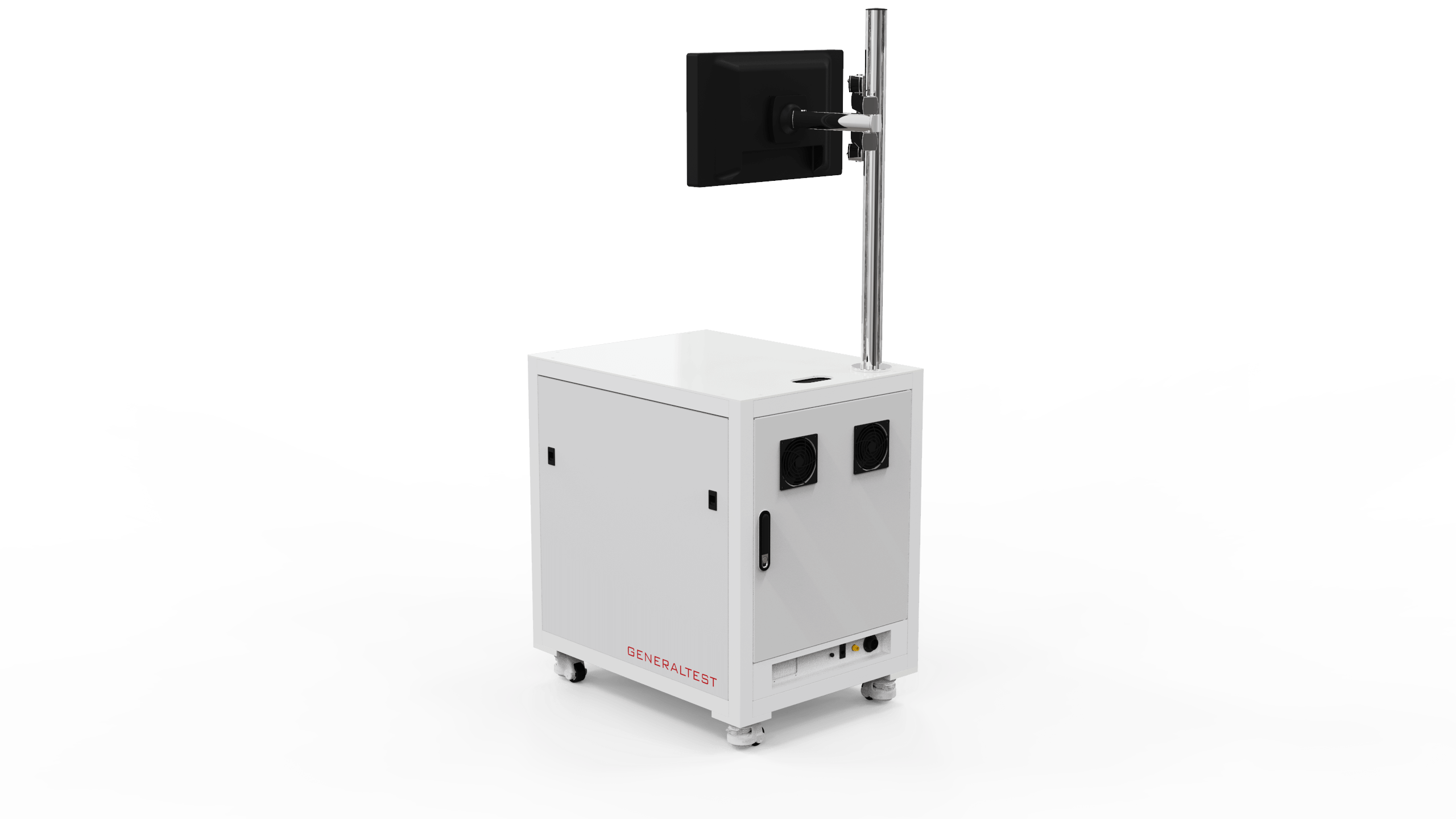

The standard 15U test cabinet is a testing machine that can be freely matched with standard 19 inch instruments. It can be flexibly matched with an industrial computer, a standard half width 2U programmable power supply, a multimeter, a GT-B-680-A multifunctional control chassis, a keyboard holder, electrical safety circuits, gas interfaces, safety grounding modules, and network interfaces.
| Type | Parameter |
| Appearance dimensions (mm) | 600(L)*800(W)*800(H) |
| Internal dimensions | 19U19*4.45/U |
| Colour | RAL7035 |
| Texture of Material | Aluminum SPCC |
| Weight | 60kg |
| Test application field | |
| Automotive electronics, consumer electronics, security, semi-automatic production test lines, manual test stations | |

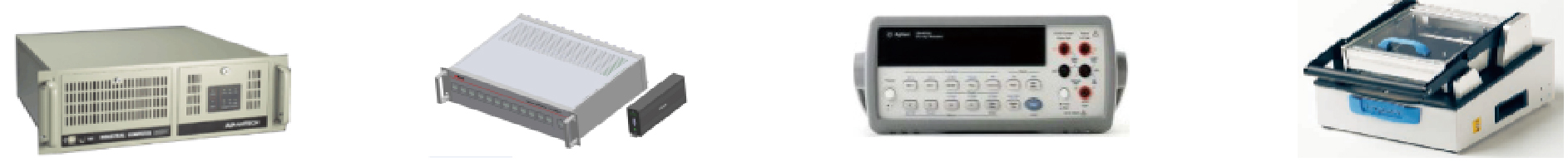

| Common instrument configuration | |
|
|
